Foldable Bike Pump Style: Ride Ready! [Guide]

Quick Summary: A foldable bike pump is a compact, portable pump perfect for cyclists on the go. To use one effectively, unfold it completely, secure the base on the ground, attach the pump head firmly to your bike’s valve (Presta or Schrader), and pump with smooth, full strokes. Fold it back up for easy storage when you’re done!

Ever been miles from home with a flat tire and no way to inflate it? It’s a cyclist’s nightmare! A foldable bike pump can be a lifesaver. These handy pumps pack down small enough to fit in a backpack or mount to your bike frame, but they still deliver enough air to get you back on the road or trail.

In this guide, I’ll walk you through everything you need to know about foldable bike pumps. We’ll cover how to choose the right one, how to use it properly, and how to maintain it so it’s ready when you need it most. Ready to keep rolling? Let’s get started.

Table of Contents

Toggle

Choosing the Right Foldable Bike Pump

Not all foldable bike pumps are created equal. Here’s what to consider when choosing one:

Pump Type

There are two main types of foldable bike pumps:

Mini Floor Pumps: These have a fold-out footplate for stability, making them easier to use than frame-mounted pumps.
Frame-Mounted Pumps: These are smaller and lighter, designed to attach directly to your bike frame.

Material

The material of your pump affects its durability and weight:

Aluminum: Lightweight and durable, a good choice for frequent use.
Plastic: More affordable, but may not last as long as aluminum.

Valve Compatibility

Make sure the pump is compatible with your bike’s valve type:

Presta: Narrower valve found on most road and some mountain bikes.
Schrader: Wider valve, like those on car tires, common on mountain and hybrid bikes. Many pumps come with adapters to switch between valve types.

Pressure (PSI)

Consider the maximum pressure the pump can deliver:

Road Bikes: Need higher pressure (80-120 PSI).
Mountain Bikes: Need lower pressure (30-50 PSI).

Size and Weight

Think about how you’ll be carrying the pump:

Backpack: Size is less of a concern.
Bike Frame: Look for a compact and lightweight model.

How to Use a Foldable Bike Pump

Using a foldable bike pump is simple. Follow these steps to inflate your tires quickly and efficiently:

1. Unfold the Pump

Most foldable pumps have a locking mechanism to keep them compact. Release the lock and fully extend the pump. For mini floor pumps, unfold the footplate.

2. Secure the Base

If you have a mini floor pump, place the footplate on the ground and step on it to keep the pump stable. For frame-mounted pumps, find a stable surface to brace against.

3. Attach the Pump Head

Remove the valve cap from your tire. Then, attach the pump head to the valve:

Presta Valve: Unscrew the valve nut slightly, then press the pump head onto the valve. Flip the locking lever (if there is one) to secure the connection.
Schrader Valve: Simply press the pump head onto the valve.

Make sure the connection is tight to prevent air from escaping.

4. Start Pumping

Grip the pump handle firmly and begin pumping. Use smooth, full strokes. Watch the pressure gauge (if your pump has one) to monitor the PSI.

5. Reach the Desired Pressure

Check the recommended PSI for your tires. It’s usually printed on the tire sidewall. Stop pumping when you reach the desired pressure.

6. Detach the Pump Head

Flip the locking lever (if applicable) and carefully remove the pump head from the valve. Screw the Presta valve nut back down (if applicable).

7. Replace the Valve Cap

Screw the valve cap back onto the valve to keep dirt and debris out.

8. Fold the Pump

Collapse the pump back into its folded position and engage the locking mechanism.

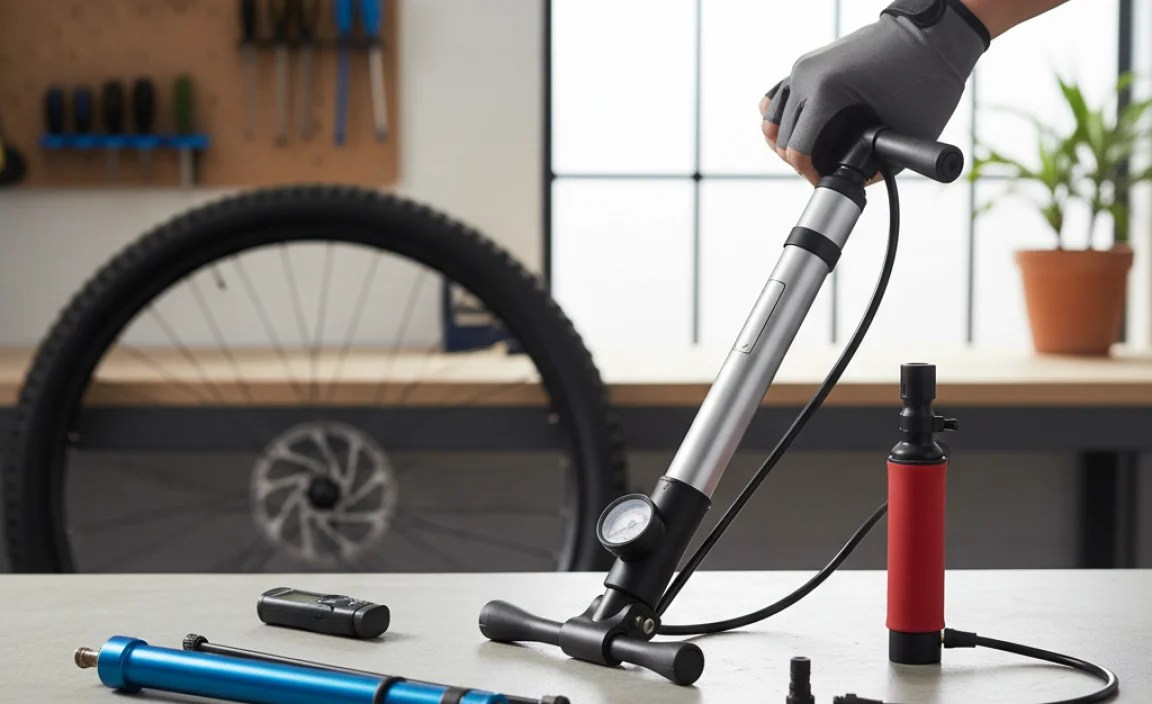

Tips for Efficient Pumping

Here are some tips to make pumping easier and more effective:

Use Your Body Weight: Lean into the pump to generate more force.
Maintain a Good Seal: Ensure the pump head is securely attached to the valve to prevent air leaks.
Take Breaks: If you’re pumping a lot of air, take short breaks to avoid overheating the pump.
Check the Pressure Regularly: Use a separate pressure gauge to verify the PSI if your pump’s gauge seems inaccurate.

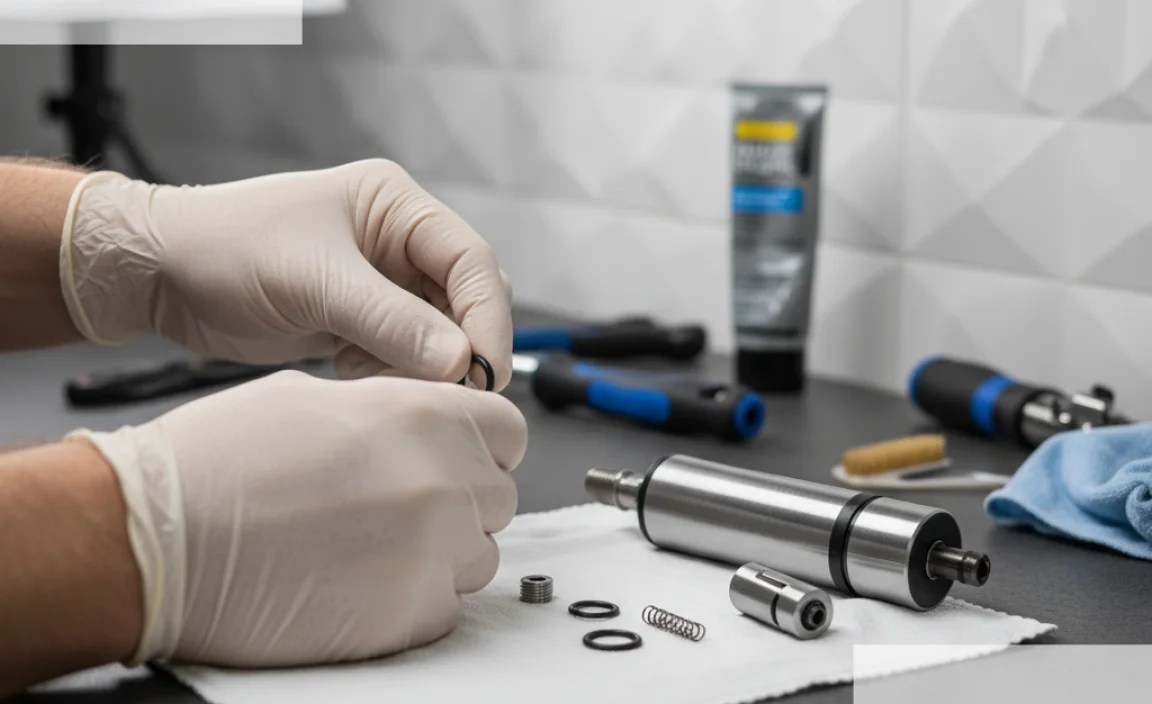

Maintaining Your Foldable Bike Pump

Proper maintenance will keep your foldable bike pump working smoothly for years:

Cleaning

Keep the pump clean by wiping it down with a damp cloth after each use. Pay special attention to the pump head, removing any dirt or debris that could clog the valve.

Lubrication

Periodically lubricate the moving parts of the pump with a light oil or silicone spray. This will keep the pump action smooth and prevent wear.

Checking for Leaks

Inspect the pump hose and connections for cracks or leaks. Replace any damaged parts immediately.

Storage

Store the pump in a dry place away from direct sunlight. This will prevent the seals and hoses from drying out and cracking.

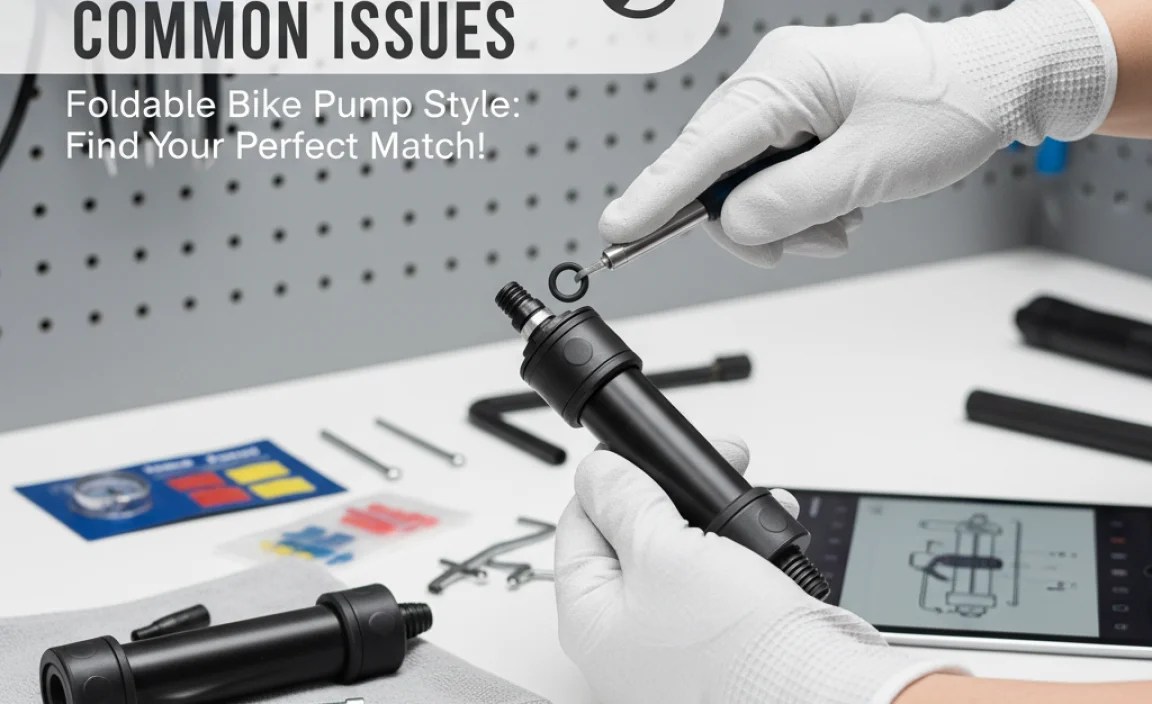

Troubleshooting Common Issues

Here are some common problems you might encounter with a foldable bike pump and how to fix them:

Problem	Possible Cause	Solution
Pump won’t inflate tire	Poor seal between pump head and valve	Ensure pump head is fully engaged and locked onto the valve.
Air leaking from pump head	Damaged or worn-out seal	Replace the pump head or seal.
Pump is hard to push	Lack of lubrication	Lubricate the pump’s moving parts.
Pressure gauge is inaccurate	Faulty gauge	Use a separate pressure gauge to verify the PSI.
Hose is cracked or leaking	Wear and tear	Replace the hose.

Foldable Bike Pump Recommendations

Here are a few of my favorite foldable bike pumps, based on different needs and budgets:

Best Overall: Lezyne Micro Floor Drive HP
Best Budget: Topeak Mini Morph
Best for Road Bikes: PRO Performance Mini Pump
Best for Mountain Bikes: Blackburn Mammoth 2FL
Best Lightweight: Crankbrothers Sterling S

Foldable Bike Pump vs. Other Pump Types

Let’s compare foldable bike pumps to other common types:

Pump Type	Pros	Cons	Best For
Foldable Bike Pump	Compact, portable, convenient	Can be less efficient than floor pumps, requires more effort	Road cyclists, commuters, touring
Floor Pump	Efficient, easy to use, accurate pressure gauge	Bulky, not portable	Home use, workshop
CO2 Inflator	Fast inflation, very compact	Requires CO2 cartridges, can be wasteful, one-time use per cartridge	Racing, emergency repairs
Hand Pump (Non-Foldable)	Simple, lightweight, inexpensive	Less efficient than foldable pumps, requires significant effort	Short rides, occasional use

Step-by-Step Guide: Replacing a Pump Head Seal

A worn-out pump head seal is a common reason why your foldable bike pump might lose pressure. Here’s how to replace it:

Gather Your Tools: You’ll need a new pump head seal (make sure it’s the correct size for your pump model), a small screwdriver or pick, and possibly some pliers.
Disassemble the Pump Head: Most pump heads can be unscrewed or pulled apart. Look for a small screw or retaining clip that holds the two halves together. Carefully separate the halves.
Remove the Old Seal: Use the screwdriver or pick to gently pry out the old seal. It might be brittle or cracked.
Clean the Pump Head: Wipe the inside of the pump head with a clean cloth to remove any debris or residue.
Install the New Seal: Insert the new seal into the pump head, making sure it sits flush and is properly seated.
Reassemble the Pump Head: Put the two halves of the pump head back together and secure them with the screw or retaining clip.
Test the Pump: Attach the pump head to your bike’s valve and test for leaks. If you still hear air escaping, double-check the seal installation.

Step-by-Step Guide: Cleaning a Clogged Pump Nozzle

Over time, dirt and debris can clog the nozzle of your foldable bike pump, reducing its efficiency. Here’s how to clean it:

Gather Your Tools: You’ll need a small needle or pin, some rubbing alcohol, and a clean cloth.
Inspect the Nozzle: Look closely at the nozzle to identify any visible dirt or debris.
Insert the Needle: Carefully insert the needle or pin into the nozzle opening to dislodge any blockages. Be gentle to avoid damaging the nozzle.
Flush with Rubbing Alcohol: Dip the clean cloth in rubbing alcohol and wipe around the nozzle. This will help dissolve any remaining debris.
Test the Pump: Attach the pump to your bike’s valve and test for airflow. Repeat the cleaning process if necessary.

FAQ About Foldable Bike Pumps

Here are some common questions about foldable bike pumps:

What is the ideal PSI for my bike tires?

The recommended PSI is usually printed on the sidewall of your tires. Road bikes typically need 80-120 PSI, while mountain bikes need 30-50 PSI.

Can I use a foldable pump for tubeless tires?

Yes, but it might take a while to seat the tire bead. A high-volume pump or CO2 inflator is generally better for tubeless setups.

How often should I lubricate my foldable bike pump?

Lubricate the pump every few months, or whenever you notice the action becoming stiff.

What’s the difference between Presta and Schrader valves?

Presta valves are narrow and have a locking nut at the tip. Schrader valves are wider and similar to those on car tires.

Can I carry a foldable pump on an airplane?

Check with the airline, but most foldable pumps are small enough to be carried in your checked luggage. CO2 cartridges are usually prohibited.

How do I know if my pump head seal needs replacing?

If you hear air leaking from the pump head while inflating your tire, the seal is likely worn out.

Are foldable bike pumps suitable for e-bikes?

Yes, as long as the pump can reach the required tire pressure for your e-bike. Check your e-bike tire’s recommended PSI.

Conclusion

A foldable bike pump is an essential tool for any cyclist who wants to be prepared for unexpected flats. By choosing the right pump, using it correctly, and maintaining it properly, you can ensure that you’re always ready to get back on the road or trail. Don’t let a flat tire ruin your ride – invest in a quality foldable bike pump and enjoy the peace of mind that comes with knowing you can handle anything the road throws your way. Now get out there and ride with confidence!
