Ever wondered how power plants convert heat into electricity using steam? The Rankine cycle is a fundamental process behind it. While the ideal Rankine cycle provides a perfect, theoretical model, real-world applications introduce inefficiencies. These inefficiencies, particularly in the turbine and pump, can make understanding the system a bit tricky. Don’t worry! This guide simplifies how to analyze a nonideal saturated Rankine cycle, focusing on the turbine and pump. We’ll break down the key concepts and calculations so you can confidently evaluate these critical components. Ready to dive in?

Understanding the Ideal Rankine Cycle

Before tackling the nonideal scenario, let’s quickly review the ideal Rankine cycle. This cycle consists of four key processes:

1. Pumping: A pump increases the pressure of the working fluid (usually water) while in the liquid phase.
2. Boiling: Heat is added to the working fluid in a boiler, converting it into saturated steam.
3. Expansion (Turbine): The high-pressure steam expands through a turbine, generating power.
4. Condensation: The steam is condensed back into a liquid in a condenser, rejecting heat.

In the ideal cycle, these processes are assumed to be reversible and adiabatic (isentropic), meaning no entropy is generated and no heat is exchanged with the surroundings during the pumping and expansion stages. This makes the ideal cycle a useful, but unrealistic, benchmark.

Why Nonideal? Real-World Inefficiencies

The ideal Rankine cycle is a theoretical construct. In reality, turbines and pumps are not perfectly efficient. Here’s why:

• Friction: Fluid friction within the turbine and pump causes pressure drops and energy losses.
• Turbulence: Non-uniform flow patterns lead to energy dissipation.
• Heat Transfer: Unintentional heat transfer between the working fluid and the surroundings occurs.
• Mechanical Losses: Friction in bearings and other moving parts reduces the overall efficiency.

These factors cause the actual performance of the turbine and pump to deviate from the ideal, isentropic behavior. Consequently, the real Rankine cycle is nonideal.

Analyzing the Nonideal Turbine

The turbine’s performance is a crucial indicator of the Rankine cycle’s overall efficiency. Here’s how to analyze a nonideal turbine:

1. Determine Turbine Inlet Conditions

Identify the state of the steam entering the turbine. This includes:

• Pressure (P1): The pressure of the steam entering the turbine.
• Temperature (T1): The temperature of the steam entering the turbine.
• Enthalpy (h1): The specific enthalpy of the steam entering the turbine.
• Entropy (s1): The specific entropy of the steam entering the turbine.

These values are typically obtained from steam tables or thermodynamic property software. You can find reliable steam tables from engineering resources or university websites. For example, the Engineering Thermodynamics website at MIT provides a comprehensive set of steam tables.

2. Determine Turbine Outlet Pressure

The outlet pressure (P2) is usually dictated by the condenser pressure. This is a key parameter for analyzing the turbine’s performance.

3. Calculate Ideal Turbine Outlet Conditions

For an ideal turbine, the expansion process is isentropic (constant entropy). Therefore, s2s = s1 (where s2s is the entropy at the turbine outlet for the isentropic case). Using P2 and s2s, determine the ideal outlet enthalpy (h2s) from steam tables.

4. Determine Actual Turbine Outlet Conditions

In a nonideal turbine, the actual outlet enthalpy (h2) will be higher than the ideal outlet enthalpy (h2s) due to inefficiencies. You’ll need additional information, such as the turbine’s isentropic efficiency (ηt), to determine h2.

The isentropic efficiency is defined as:

ηt = (h1 – h2) / (h1 – h2s)

Rearranging this equation, you can solve for the actual outlet enthalpy:

h2 = h1 – ηt * (h1 – h2s)

5. Calculate Turbine Work

The actual work produced by the turbine (Wt) is given by:

Wt = h1 – h2

The ideal work produced by the turbine (Wts) is given by:

Wts = h1 – h2s

6. Analyze Turbine Efficiency

The isentropic efficiency (ηt) provides a measure of how close the actual turbine performance is to the ideal. A higher isentropic efficiency indicates a more efficient turbine.

Here’s a table summarizing these steps:

Step	Description	Parameters
1	Determine Inlet Conditions	P1, T1, h1, s1
2	Determine Outlet Pressure	P2
3	Calculate Ideal Outlet Conditions	s2s = s1, h2s
4	Determine Actual Outlet Conditions	ηt, h2
5	Calculate Turbine Work	Wt, Wts
6	Analyze Turbine Efficiency	ηt

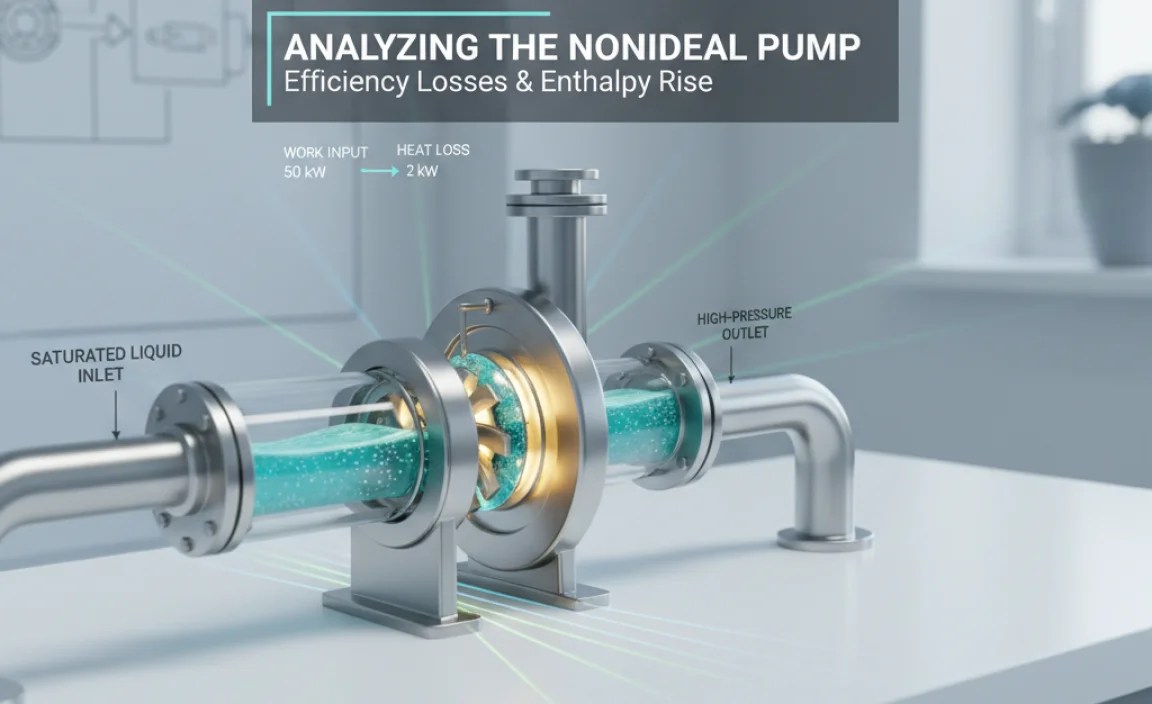

Analyzing the Nonideal Pump

Similar to the turbine, the pump also experiences inefficiencies in a nonideal Rankine cycle. Here’s how to analyze a nonideal pump:

1. Determine Pump Inlet Conditions

Identify the state of the working fluid entering the pump. This includes:

• Pressure (P3): The pressure of the liquid entering the pump.
• Temperature (T3): The temperature of the liquid entering the pump.
• Specific Volume (v3): The specific volume of the liquid entering the pump.
• Enthalpy (h3): The specific enthalpy of the liquid entering the pump.
• Entropy (s3): The specific entropy of the liquid entering the pump.

These values are typically obtained from steam tables, considering the fluid is usually saturated liquid at the condenser pressure.

2. Determine Pump Outlet Pressure

The outlet pressure (P4) is the pressure required to feed the boiler. This is a key parameter for analyzing the pump’s performance.

3. Calculate Ideal Pump Outlet Conditions

For an ideal pump, the compression process is isentropic. The ideal outlet enthalpy (h4s) can be calculated using the following equation:

h4s = h3 + v3 * (P4 – P3)

4. Determine Actual Pump Outlet Conditions

In a nonideal pump, the actual outlet enthalpy (h4) will be higher than the ideal outlet enthalpy (h4s) due to inefficiencies. You’ll need the pump’s isentropic efficiency (ηp) to determine h4.

The isentropic efficiency is defined as:

ηp = (h4s – h3) / (h4 – h3)

Rearranging this equation, you can solve for the actual outlet enthalpy:

h4 = h3 + (h4s – h3) / ηp

5. Calculate Pump Work

The actual work required by the pump (Wp) is given by:

Wp = h4 – h3

The ideal work required by the pump (Wps) is given by:

Wps = h4s – h3

6. Analyze Pump Efficiency

The isentropic efficiency (ηp) provides a measure of how close the actual pump performance is to the ideal. A higher isentropic efficiency indicates a more efficient pump.

Here’s a table summarizing these steps:

Step	Description	Parameters
1	Determine Inlet Conditions	P3, T3, v3, h3, s3
2	Determine Outlet Pressure	P4
3	Calculate Ideal Outlet Conditions	h4s
4	Determine Actual Outlet Conditions	ηp, h4
5	Calculate Pump Work	Wp, Wps
6	Analyze Pump Efficiency	ηp

Impact on the Rankine Cycle

The inefficiencies in the turbine and pump directly affect the overall efficiency of the Rankine cycle. Here’s how:

• Reduced Turbine Work: A less efficient turbine produces less work for the same amount of steam entering it.
• Increased Pump Work: A less efficient pump requires more work to increase the pressure of the liquid.
• Lower Thermal Efficiency: The overall thermal efficiency of the Rankine cycle is reduced due to the combined effects of reduced turbine work and increased pump work.

The thermal efficiency (ηth) of the Rankine cycle is defined as:

ηth = (Wt – Wp) / Qin

Where Qin is the heat added in the boiler.

Practical Implications

Understanding the nonideal behavior of the turbine and pump is crucial for:

• System Design: Designing more efficient turbines and pumps to minimize losses.
• Performance Optimization: Identifying areas for improvement in existing Rankine cycle systems.
• Maintenance: Monitoring the performance of turbines and pumps to detect degradation and schedule maintenance.

Example Calculation

Let’s walk through a simplified example:

Turbine:

• Inlet: P1 = 4 MPa, T1 = 300 °C, h1 = 2962 kJ/kg, s1 = 6.364 kJ/kg.K
• Outlet: P2 = 10 kPa
• Isentropic Efficiency: ηt = 0.85

First, find h2s (isentropic outlet enthalpy). Since s2s = s1 = 6.364 kJ/kg.K and P2 = 10 kPa, from steam tables, h2s ≈ 2165 kJ/kg.

Next, calculate h2 (actual outlet enthalpy):

h2 = h1 – ηt * (h1 – h2s) = 2962 – 0.85 * (2962 – 2165) ≈ 2282 kJ/kg

The actual work produced by the turbine:

Wt = h1 – h2 = 2962 – 2282 = 680 kJ/kg

Pump:

• Inlet: P3 = 10 kPa, T3 = 45.81 °C (saturated liquid), v3 ≈ 0.00101 m³/kg, h3 ≈ 191.8 kJ/kg
• Outlet: P4 = 4 MPa
• Isentropic Efficiency: ηp = 0.75

First, calculate h4s (isentropic outlet enthalpy):

h4s = h3 + v3 * (P4 – P3) = 191.8 + 0.00101 * (4000 – 10) ≈ 195.8 kJ/kg

Next, calculate h4 (actual outlet enthalpy):

h4 = h3 + (h4s – h3) / ηp = 191.8 + (195.8 – 191.8) / 0.75 ≈ 197.1 kJ/kg

The actual work required by the pump:

Wp = h4 – h3 = 197.1 – 191.8 = 5.3 kJ/kg

In this example, the turbine produces 680 kJ/kg of work, while the pump consumes 5.3 kJ/kg of work. These values, combined with the heat input in the boiler, can be used to calculate the overall thermal efficiency of the Rankine cycle.

Tools and Resources

To analyze a nonideal Rankine cycle effectively, consider using the following tools and resources:

• Steam Tables: Essential for obtaining thermodynamic properties of water at various temperatures and pressures.
• Thermodynamic Software: Software like EES (Engineering Equation Solver) or similar tools can automate the calculations and property lookups.
• Online Calculators: Several websites offer online calculators for thermodynamic properties and Rankine cycle analysis.
• Textbooks: Thermodynamics textbooks provide detailed explanations of the Rankine cycle and its analysis.

Consider referring to reputable sources like the ASME (American Society of Mechanical Engineers) for standards and best practices in power plant engineering.

FAQ

Here are some frequently asked questions about the nonideal saturated Rankine cycle:

What is the main difference between an ideal and a nonideal Rankine cycle?

The ideal Rankine cycle assumes perfect, reversible processes with no losses, while the nonideal cycle accounts for real-world inefficiencies like friction and heat transfer in the turbine and pump.

Why is the turbine isentropic efficiency always less than 100%?

Turbine isentropic efficiency is less than 100% due to factors like fluid friction, turbulence, and mechanical losses within the turbine, which cause the actual expansion process to deviate from the ideal isentropic process.

How does pump efficiency affect the overall Rankine cycle efficiency?

Lower pump efficiency means more work is required to compress the working fluid, which reduces the net work output of the cycle and lowers the overall thermal efficiency.

What are the typical values for turbine and pump isentropic efficiencies?

Typical isentropic efficiencies range from 80-90% for turbines and 70-85% for pumps, but these values can vary depending on the design and operating conditions.

How can I improve the efficiency of a real Rankine cycle?

Efficiency can be improved by using more efficient turbines and pumps, reducing pressure drops in the system, and optimizing heat transfer in the boiler and condenser. Superheating the steam before it enters the turbine can also increase efficiency.

What is the significance of entropy generation in a nonideal Rankine cycle?

Entropy generation indicates the irreversibilities in the cycle. Higher entropy generation corresponds to greater energy losses and lower efficiency. Analyzing entropy generation helps identify areas where improvements can be made.

Where can I find reliable steam tables for thermodynamic calculations?

Reliable steam tables can be found in thermodynamics textbooks, engineering handbooks, and online resources from reputable sources like NIST (National Institute of Standards and Technology) and university engineering departments.

Conclusion

Analyzing a nonideal saturated Rankine cycle, especially the turbine and pump, is essential for understanding and optimizing power generation systems. By accounting for real-world inefficiencies, engineers can design and operate more efficient and reliable power plants. Remember to use steam tables, thermodynamic software, and the equations we discussed to accurately assess the performance of these critical components. With a solid understanding of these principles, you’re well-equipped to tackle more complex thermodynamic challenges!

“`
