Quick Summary: A heat pump cycle works by transferring heat from one place to another using a refrigerant. In heating mode, it extracts heat from the outside air (even in cold temperatures) and moves it inside. In cooling mode, it reverses the process, removing heat from inside your home and releasing it outdoors. This efficient process makes heat pumps a great choice for both heating and cooling.

Ever wondered how a heat pump can keep your home warm in the winter and cool in the summer? It might seem like magic, but it’s actually clever science! Understanding the heat pump cycle can help you appreciate how this energy-efficient system works and why it’s becoming increasingly popular. Don’t worry, we’ll break it down step-by-step in plain language. Get ready to learn how heat pumps move heat, not create it, and why that makes all the difference.

Understanding the Basics of a Heat Pump

Before diving into the cycle itself, let’s cover some fundamental concepts. A heat pump doesn’t generate heat; instead, it moves heat from one place to another. Think of it like a bicycle pump pushing air – but instead of air, it’s pushing heat!

Key Components

Here are the main parts of a heat pump that make the magic happen:

• Refrigerant: This special fluid absorbs and releases heat as it changes between liquid and gas.
• Compressor: The heart of the system, it pressurizes the refrigerant, increasing its temperature.
• Condenser: Here, the hot refrigerant releases heat, usually into your home.
• Expansion Valve (or Metering Device): This regulates the flow of refrigerant, causing a pressure drop and cooling it down.
• Evaporator: This is where the refrigerant absorbs heat from the outside air (or inside air in cooling mode).

The Refrigerant: The Heat-Moving Hero

The refrigerant is crucial. It has properties that allow it to absorb heat at low temperatures and release it at higher temperatures. This phase change (from liquid to gas and back) is how the heat pump moves heat efficiently.

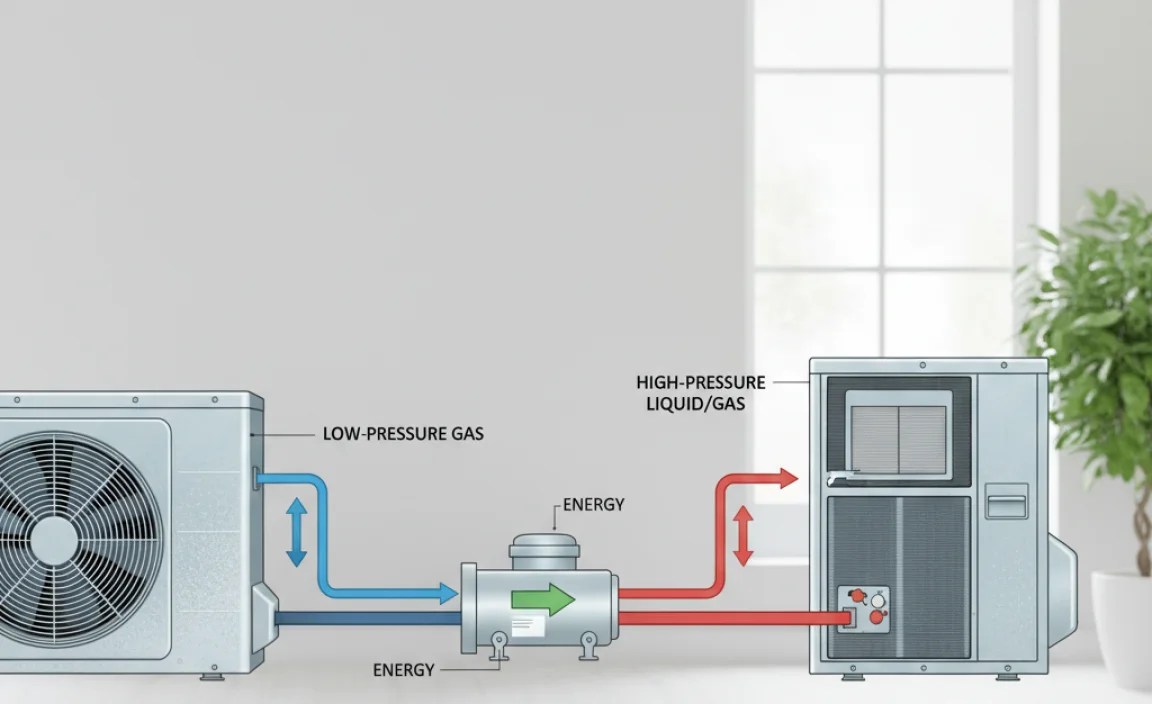

The Heating Cycle: Warming Up Your Home

During the heating cycle, the heat pump works to pull heat from the outside air and bring it inside. Here’s how it happens:

1. Evaporation: The cold, low-pressure refrigerant flows through the outdoor evaporator coil. Even on a chilly day, there’s still some heat in the air. The refrigerant absorbs this heat and turns into a low-pressure gas.
2. Compression: The gaseous refrigerant then enters the compressor, which increases its pressure and temperature significantly.
3. Condensation: The hot, high-pressure refrigerant flows into the indoor condenser coil. Here, it releases the heat it picked up outside into your home. As it releases heat, the refrigerant cools down and turns back into a high-pressure liquid.
4. Expansion: The high-pressure liquid refrigerant passes through the expansion valve, which reduces its pressure and temperature. This creates a cold, low-pressure liquid, ready to start the cycle again at the evaporator.

Think of it like this: The heat pump is like a skilled cyclist, constantly pedaling to move heat from the cold outdoors to the warm indoors.

The Cooling Cycle: Keeping You Comfortable

In the summer, the heat pump reverses its operation to cool your home. The process is essentially the same, but the roles of the indoor and outdoor coils are switched:

1. Evaporation: The cold, low-pressure refrigerant flows through the indoor evaporator coil. It absorbs heat from the air inside your home, cooling the air as it passes over the coil. The refrigerant turns into a low-pressure gas.
2. Compression: The gaseous refrigerant is compressed, increasing its pressure and temperature.
3. Condensation: The hot, high-pressure refrigerant flows to the outdoor condenser coil, where it releases the heat it absorbed from inside your home. As it releases heat, it turns back into a high-pressure liquid.
4. Expansion: The high-pressure liquid refrigerant passes through the expansion valve, reducing its pressure and temperature, ready to absorb more heat from inside your home.

Now, the heat pump is like a cyclist working hard to move heat from the cool indoors to the hot outdoors.

Heat Pump Efficiency: Why It Matters

One of the biggest advantages of a heat pump is its efficiency. Because it moves heat rather than generates it, it can deliver more energy than it consumes. This is measured by two key ratings:

• Heating Seasonal Performance Factor (HSPF): Measures heating efficiency. A higher HSPF rating means greater efficiency.
• Seasonal Energy Efficiency Ratio (SEER): Measures cooling efficiency. Again, a higher SEER rating means better efficiency.

Choosing a heat pump with high HSPF and SEER ratings can save you money on your energy bills and reduce your carbon footprint. It’s like choosing a bike with high-quality components that make your ride smoother and more efficient!

Types of Heat Pumps

There are several types of heat pumps, each with its own advantages and disadvantages:

• Air-Source Heat Pumps: These are the most common type. They transfer heat between your home and the outside air.
• Geothermal Heat Pumps: These use the earth’s constant temperature to transfer heat. They are more efficient but also more expensive to install.
• Ductless Mini-Split Heat Pumps: These are great for homes without ductwork or for adding heating and cooling to individual rooms.

Choosing the right type of heat pump depends on your climate, budget, and specific needs.

Heat Pump Maintenance: Keeping It Running Smoothly

Like any mechanical system, a heat pump needs regular maintenance to keep it running efficiently. Here are some tips:

• Clean or Replace Air Filters: Dirty filters restrict airflow and reduce efficiency. Aim to clean or replace them every 1-3 months.
• Clear Outdoor Unit: Keep the area around the outdoor unit free of debris, such as leaves and snow.
• Schedule Professional Maintenance: Have a qualified technician inspect and service your heat pump annually.

Regular maintenance is like taking care of your bike – it ensures a smooth, efficient ride (or in this case, heating and cooling) for years to come.

Troubleshooting Common Heat Pump Problems

Even with regular maintenance, you might encounter some common issues. Here are a few and how to address them:

• Heat Pump Not Heating or Cooling: Check the thermostat settings, air filter, and circuit breaker. If the problem persists, call a technician.
• Noisy Operation: Loose parts or a failing motor can cause noise. A technician can diagnose and repair the issue.
• Ice Buildup on Outdoor Unit: Some ice is normal during the heating season, but excessive buildup can indicate a problem. Ensure proper airflow and consider calling a technician.

Comparing Heat Pumps to Traditional HVAC Systems

Heat pumps offer several advantages over traditional heating and cooling systems:

Feature	Heat Pump	Traditional HVAC (Furnace & AC)
Efficiency	Higher efficiency, especially in moderate climates	Lower efficiency
Energy Source	Electricity	Natural gas, propane, or oil (furnace) and electricity (AC)
Functionality	Provides both heating and cooling	Separate systems for heating and cooling
Environmental Impact	Lower carbon footprint (especially with renewable energy)	Higher carbon footprint
Upfront Cost	Can be higher	Generally lower

While the initial cost of a heat pump might be higher, the long-term energy savings and environmental benefits can make it a worthwhile investment.

Real-World Examples of Heat Pump Applications

Heat pumps are used in a variety of settings, from residential homes to commercial buildings. Here are a few examples:

• Residential Homes: Heat pumps are a popular choice for homeowners looking for efficient and cost-effective heating and cooling.
• Apartment Buildings: Ductless mini-split heat pumps are ideal for providing individual climate control in apartment units.
• Office Buildings: Heat pumps can be used to provide zoned heating and cooling in office spaces, improving comfort and energy efficiency.
• Schools and Universities: Geothermal heat pumps are often used in educational institutions to reduce energy costs and environmental impact.

The Future of Heat Pump Technology

Heat pump technology is constantly evolving, with ongoing research and development focused on improving efficiency, performance in cold climates, and reducing refrigerant emissions. Some exciting developments include:

• Cold-Climate Heat Pumps: These are designed to operate efficiently in very cold temperatures, expanding the range of areas where heat pumps can be used effectively.
• Low-Global Warming Potential (GWP) Refrigerants: These refrigerants have a lower impact on the environment, reducing the carbon footprint of heat pumps.
• Smart Heat Pumps: These incorporate smart technology to optimize performance and energy savings based on real-time conditions and user preferences.

As technology advances, heat pumps are poised to play an even greater role in creating a sustainable and energy-efficient future.

Government Incentives and Rebates for Heat Pumps

Many governments and utility companies offer incentives and rebates to encourage the adoption of heat pumps. These incentives can help offset the upfront cost of purchasing and installing a heat pump, making it an even more attractive option. Check with your local utility company and government agencies to see what incentives are available in your area.

FAQ: Understanding Heat Pump Cycles

What is a heat pump in simple terms?

A heat pump is a device that moves heat from one place to another. It can heat or cool your home by transferring heat either in or out, unlike a furnace which generates heat.

How does a heat pump work in cold weather?

Even in cold weather, there’s still heat energy in the air. A heat pump extracts this heat and transfers it inside your home. Think of it like pulling a small amount of heat from a large, cold space.

Is a heat pump more efficient than a furnace?

Yes, in many cases. Heat pumps move heat rather than generating it, making them more energy-efficient. They can deliver more heat energy than the electrical energy they consume.

Can a heat pump replace my air conditioner?

Absolutely! A heat pump can both heat and cool your home, making it a versatile replacement for both a furnace and an air conditioner.

What is the lifespan of a heat pump?

With proper maintenance, a heat pump can last 15-20 years. Regular servicing and filter changes can help extend its lifespan.

What does HSPF mean for heat pumps?

HSPF stands for Heating Seasonal Performance Factor. It measures the heating efficiency of a heat pump. The higher the HSPF, the more efficient the unit.

What is SEER rating in heat pumps?

SEER stands for Seasonal Energy Efficiency Ratio. It measures the cooling efficiency of a heat pump. A higher SEER rating indicates better cooling efficiency.

Conclusion

Understanding how a heat pump cycle works demystifies this efficient heating and cooling technology. By moving heat instead of creating it, heat pumps offer an energy-saving and environmentally friendly alternative to traditional HVAC systems. Whether you’re considering a new system or simply curious about how your current one works, knowing the basics of the heat pump cycle empowers you to make informed decisions and appreciate the ingenuity of this technology. Like a well-maintained bike, a properly functioning heat pump provides reliable and efficient performance for years to come.

“`
