Presta vs. Schrader: Easy Switch Guide

Quick Summary: Switching between Presta and Schrader valves on a dual chuck bike pump is simple. Locate the chuck with two openings. The smaller opening fits Presta valves, and the larger one fits Schrader valves. Press the correct opening firmly onto the valve and inflate. Some dual chucks require you to unscrew and flip an internal rubber piece. Check your pump’s instructions for specifics!

Ever struggled to pump up your bike tires because you weren’t sure which side of the pump head to use? Or maybe you’ve got a new bike with different valves than your old one? Don’t worry, you’re not alone! Figuring out how to switch between Presta and Schrader valves on a dual chuck pump can be a bit confusing at first. But with the right steps, you’ll be pumping up those tires like a pro in no time. This guide will walk you through the process, step by step, so you can get back to enjoying your ride.

Table of Contents

Toggle

Understanding Presta and Schrader Valves

Before diving into the how-to, let’s quickly cover the basics of Presta and Schrader valves. Knowing the difference will make switching between them much easier.

Schrader Valves

Schrader valves are the same type you find on car tires. They are wider, sturdier, and have a spring-loaded pin in the center. To inflate a tire with a Schrader valve, you simply press the pump head onto the valve.

Presta Valves

Presta valves are narrower and usually found on higher-end bikes, especially road bikes. They have a small nut at the top that you need to unscrew before inflating. This nut needs to be closed after inflation. Presta valves are designed for higher pressure and work well with narrow rims.

Feature	Schrader Valve	Presta Valve
Width	Wider	Narrower
Typical Use	Car tires, some bike tires	Road bikes, higher-end bikes
Inflation	Simple press-on	Unscrew nut, press-on
Pressure	Lower to medium	Medium to high

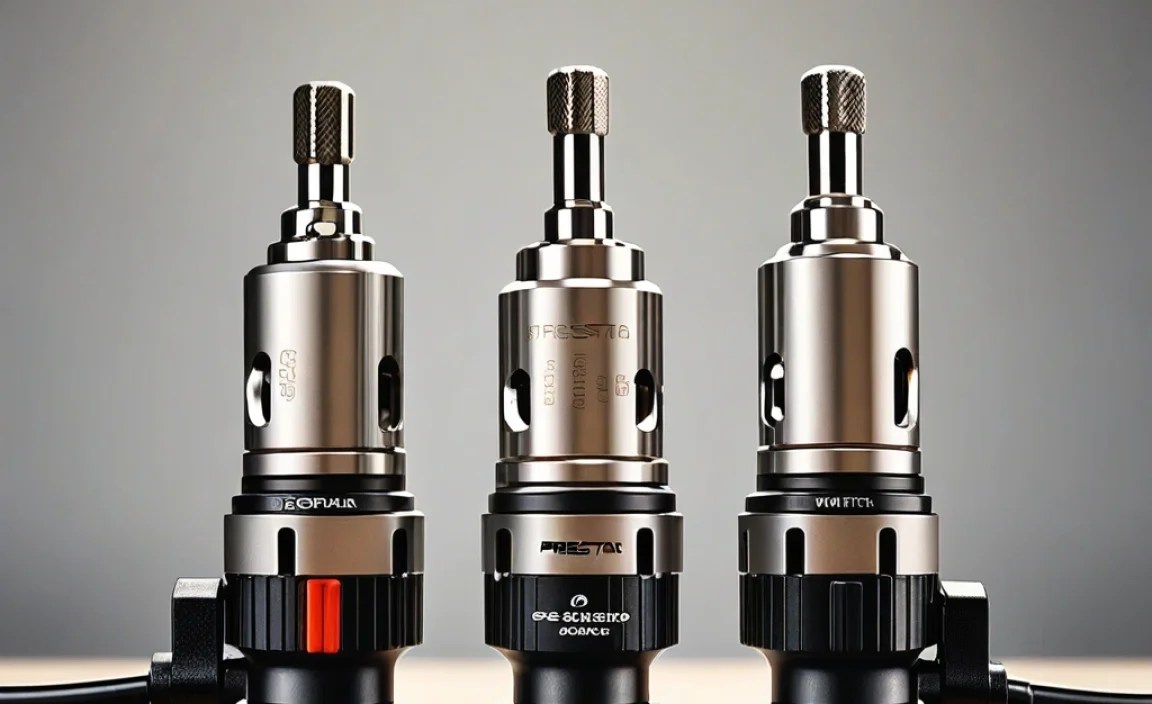

Identifying Your Dual Chuck Pump

Most modern bike pumps come with a dual chuck head. This means they can handle both Presta and Schrader valves. The chuck usually has two openings: a smaller one for Presta and a larger one for Schrader.

Some dual chucks have a simple design where you just select the correct opening and press it onto the valve. Others might require you to unscrew the chuck, flip an internal rubber piece, and screw it back on. Refer to your pump’s manual if you’re unsure which type you have.

Step-by-Step Guide to Switching Between Valve Types

Here’s a detailed guide to help you switch between Presta and Schrader valves on your dual chuck pump.

Method 1: Standard Dual Chuck

This is the most common type of dual chuck. It has two distinct openings for each valve type.

Identify the Valve Type: Look at your bike’s inner tube valve. Is it a wider Schrader valve (like a car tire) or a narrower Presta valve?
Select the Correct Opening: Choose the corresponding opening on your pump’s chuck. The smaller opening is for Presta, and the larger one is for Schrader.
Prepare the Valve:
- For Schrader: Simply remove the valve cap.
- For Presta: Unscrew the small nut at the top of the valve. Press the valve tip briefly to loosen it.
Attach the Pump Head: Press the selected opening of the pump head firmly onto the valve. Make sure it’s a snug fit to avoid air leaks.
Engage the Lever (if applicable): Some pumps have a lever to lock the pump head onto the valve. Engage the lever to secure the connection.
Inflate the Tire: Start pumping! Watch the pressure gauge to reach your desired PSI (pounds per square inch).
Detach the Pump Head:
- For Schrader: Disengage the lever (if applicable) and pull the pump head straight off. Replace the valve cap.
- For Presta: Disengage the lever (if applicable) and pull the pump head straight off. Screw the small nut back down on the valve.

Method 2: Flip-Chuck Design

Some dual chucks require you to flip an internal rubber piece to switch between valve types.

Identify the Valve Type: Determine whether you have a Presta or Schrader valve.
Unscrew the Chuck: Unscrew the front part of the pump head to expose the internal rubber piece.
Flip the Rubber Piece: Remove the rubber piece and flip it around. One side will be for Presta, and the other for Schrader. The correct side will have a hole that matches the valve type.
Reassemble the Chuck: Screw the pump head back together, making sure the rubber piece is properly aligned.
Prepare the Valve:
- For Schrader: Remove the valve cap.
- For Presta: Unscrew the small nut at the top of the valve and press the valve tip briefly.
Attach the Pump Head: Press the pump head firmly onto the valve.
Engage the Lever (if applicable): Secure the connection with the lever.
Inflate the Tire: Pump until you reach the desired pressure.
Detach the Pump Head:
- For Schrader: Disengage the lever and pull off the pump head. Replace the valve cap.
- For Presta: Disengage the lever, pull off the pump head, and screw the nut back down.

Method 3: Threaded Dual Chuck

These chucks require you to thread the pump head onto the valve. They’re less common but offer a secure connection.

Identify the Valve Type: Determine if you have a Presta or Schrader valve.
Select the Correct Adapter: Some threaded chucks have adapters for each valve type. Make sure you have the correct one attached.
Prepare the Valve:
- For Schrader: Remove the valve cap.
- For Presta: Unscrew the small nut at the top of the valve and press the valve tip briefly.
Attach the Pump Head: Thread the pump head onto the valve until it’s snug.
Inflate the Tire: Pump until you reach the desired pressure.
Detach the Pump Head: Unscrew the pump head from the valve.
- For Schrader: Replace the valve cap.
- For Presta: Screw the nut back down.

Troubleshooting Common Issues

Sometimes, things don’t go as smoothly as planned. Here are some common issues and how to fix them.

Air Leaking:
- Make sure the pump head is securely attached to the valve.
- Check the rubber seal inside the pump head for damage. Replace if necessary.
- Ensure the valve core is tight. Use a valve core tool to tighten it.
Pump Head Won’t Fit:
- Double-check that you’re using the correct opening for your valve type.
- If it’s a flip-chuck design, make sure the internal rubber piece is oriented correctly.
Valve is Bent or Damaged:
- If the valve is visibly bent or damaged, it may need to be replaced. Take your bike to a local bike shop for repair.

Essential Tools for Bike Maintenance

Having the right tools makes bike maintenance much easier. Here are a few essentials:

Bike Pump with Dual Chuck: A reliable pump is a must-have.
Tire Levers: For removing and installing tires.
Valve Core Tool: For tightening or replacing valve cores.
Multi-Tool: A compact tool with various Allen wrenches and screwdrivers.
Patch Kit: For fixing flat tires on the go.

Tips for Maintaining Your Bike Pump

A well-maintained bike pump will last longer and perform better. Here are some tips:

Clean the Pump Head: Regularly clean the pump head to remove dirt and debris.
Check the Hose: Inspect the hose for cracks or leaks. Replace if necessary.
Lubricate Moving Parts: Apply a small amount of lubricant to the pump’s moving parts to keep them working smoothly.
Store Properly: Store your pump in a dry place to prevent rust and corrosion.

Choosing the Right Bike Pump

With so many bike pumps on the market, it can be tough to choose the right one. Here are some factors to consider:

Type of Pump:
- Floor Pump: Best for home use, provides more power and stability.
- Hand Pump: Portable, great for on-the-go inflation.
- CO2 Inflator: Quick and easy, but requires CO2 cartridges.
Valve Compatibility: Make sure the pump is compatible with both Presta and Schrader valves.
Pressure Gauge: A gauge helps you inflate your tires to the correct pressure.
Build Quality: Look for a pump made from durable materials.

Frequently Asked Questions

Why do some pumps have two holes?
The two holes accommodate different valve types: Presta (narrow) and Schrader (wide). This lets you inflate various bike tires with one pump.
How do I know which hole to use?
Match the hole size to your tire valve. Smaller hole for Presta, larger for Schrader.
What if air leaks when I pump?
Make sure the pump head is firmly attached to the valve. Check the rubber seal inside the pump head for wear or damage.
Do I need an adapter for Presta valves?
Not usually. Dual chuck pumps are designed to work with both valve types directly. Ensure you’re using the correct opening.
Can I use a car tire pump on my bike?
Yes, if your bike has Schrader valves. Car pumps won’t work with Presta valves without an adapter.
What is a valve core tool used for?
A valve core tool tightens or removes the valve core inside the valve stem, which can help fix leaks.
How often should I check my tire pressure?
Check your tire pressure before each ride. Proper inflation improves performance and prevents flats.

Additional Resources

For more in-depth information on bike maintenance, check out these resources:

Conclusion

Switching between Presta and Schrader valves on a dual chuck pump doesn’t have to be a headache. With a little understanding and the right steps, you can easily inflate your tires and keep them in top condition. Remember to identify your valve type, select the correct opening on your pump head, and ensure a secure connection. And don’t forget to maintain your pump to keep it working smoothly for years to come. Now get out there and enjoy the ride, knowing you’re prepared for any inflation situation!
