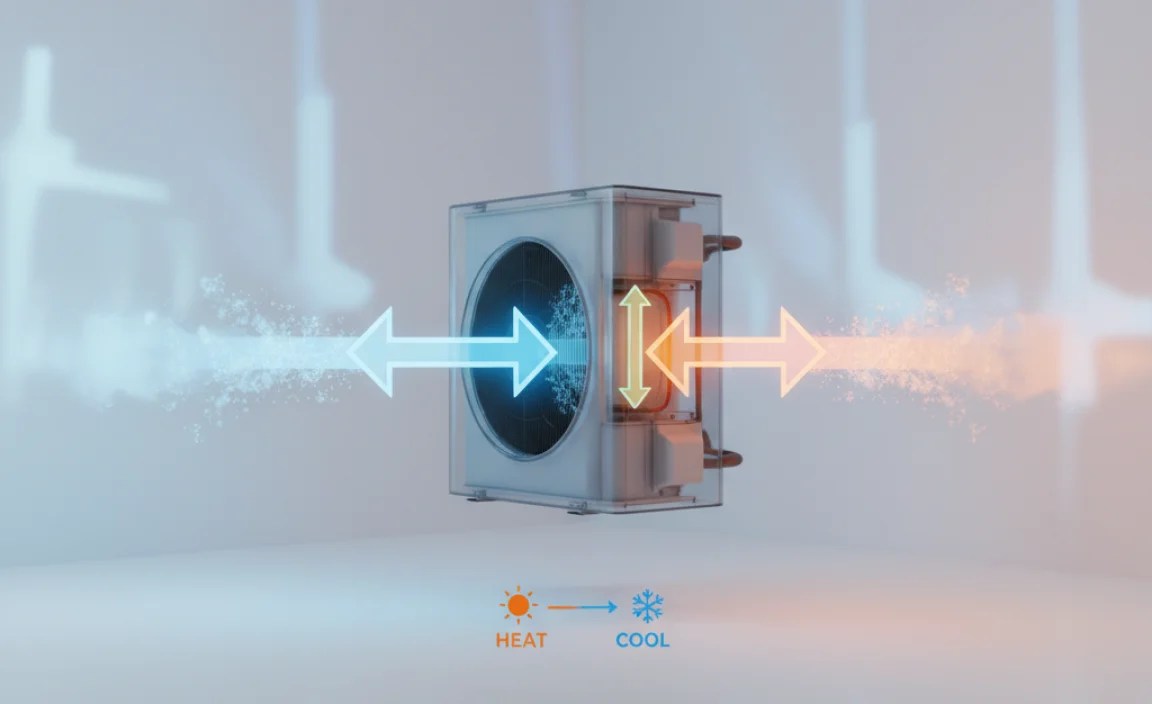

Quick Summary: A reverse cycle heat pump heats or cools your home by transferring heat, not generating it. In winter, it extracts heat from the outside air (even when it’s cold!) and moves it inside. In summer, it reverses the process, pumping heat from inside your home to the outside. It’s like a refrigerator working in reverse, providing efficient and consistent climate control.

Ever wondered how that magical box on your wall keeps you warm in winter and cool in summer without burning a ton of energy? You’re probably thinking about a reverse cycle heat pump! Understanding how these systems work can seem a bit daunting, but it’s actually quite simple once you break it down. Many people are switching to heat pumps for their efficiency and eco-friendliness, but the technology can be confusing. Don’t worry, we’ll walk you through the entire process, step-by-step. By the end of this article, you’ll have a solid grasp of how these clever devices keep your home comfortable year-round.

The Basic Components of a Reverse Cycle Heat Pump

To understand how a reverse cycle heat pump works, it’s essential to know its main parts. Think of it as a team working together to keep your home comfortable.

• Refrigerant: This is the working fluid that absorbs and releases heat as it circulates through the system. It changes between liquid and gas states.
• Compressor: The compressor increases the pressure and temperature of the refrigerant. It’s like the heart of the system, pumping the refrigerant around.
• Condenser: In heating mode, the condenser releases heat into your home. It’s where the hot refrigerant turns back into a liquid, giving off heat in the process.
• Evaporator: In heating mode, the evaporator absorbs heat from the outside air. The liquid refrigerant turns into a gas, taking heat from the surroundings.
• Expansion Valve: This valve reduces the pressure of the refrigerant, preparing it to absorb heat in the evaporator.
• Reversing Valve: This valve is the key to the “reverse cycle.” It changes the direction of the refrigerant flow, allowing the system to switch between heating and cooling modes.
• Fan: Fans are used to circulate air over the condenser and evaporator coils, helping to transfer heat more efficiently.

How It Works in Heating Mode

During the colder months, a reverse cycle heat pump works to extract heat from the outside air and bring it inside your home. It might sound impossible to get heat from cold air, but it’s all about the properties of the refrigerant.

1. Refrigerant Absorbs Heat: The refrigerant, in a liquid state, flows through the outdoor evaporator coil. Even on a cold day, the refrigerant is colder than the outside air. This allows it to absorb heat from the air, causing the refrigerant to turn into a gas.
2. Compression Boosts Temperature: The gaseous refrigerant then moves to the compressor. The compressor increases the pressure of the gas, which also raises its temperature significantly.
3. Heat Released Indoors: The high-temperature, high-pressure refrigerant flows into the indoor condenser coil. Here, it releases its heat into your home as air is blown across the coil by a fan. The refrigerant cools and turns back into a liquid.
4. Pressure Reduction: The liquid refrigerant then passes through the expansion valve, which reduces its pressure and temperature. This prepares it to absorb more heat in the outdoor evaporator, and the cycle begins again.

Here’s a table summarizing the heating mode process:

Component	Process	Result
Evaporator (Outdoor)	Refrigerant absorbs heat from outside air	Refrigerant turns into gas
Compressor	Compresses refrigerant gas	Increases refrigerant temperature
Condenser (Indoor)	Refrigerant releases heat into the home	Refrigerant turns back into liquid
Expansion Valve	Reduces refrigerant pressure	Refrigerant cools down, ready to absorb more heat

How It Works in Cooling Mode

When summer rolls around, the reverse cycle heat pump switches gears to cool your home. This is where the “reverse” part comes into play. The reversing valve changes the direction of the refrigerant flow, essentially turning the system into an air conditioner.

1. Refrigerant Absorbs Heat Indoors: The refrigerant, in a liquid state, flows through the indoor evaporator coil. It absorbs heat from the air inside your home, causing the refrigerant to turn into a gas. This cools the air, which is then circulated back into your living space.
2. Compression Increases Temperature: The gaseous refrigerant moves to the compressor, which increases its pressure and temperature, just like in heating mode.
3. Heat Released Outdoors: The high-temperature, high-pressure refrigerant flows into the outdoor condenser coil. Here, it releases its heat into the outside air as a fan blows across the coil. The refrigerant cools and turns back into a liquid.
4. Pressure Reduction: The liquid refrigerant passes through the expansion valve, which reduces its pressure and temperature. This prepares it to absorb more heat in the indoor evaporator, and the cycle repeats.

Here’s a table summarizing the cooling mode process:

Component	Process	Result
Evaporator (Indoor)	Refrigerant absorbs heat from inside air	Refrigerant turns into gas, cooling the air
Compressor	Compresses refrigerant gas	Increases refrigerant temperature
Condenser (Outdoor)	Refrigerant releases heat into the outside air	Refrigerant turns back into liquid
Expansion Valve	Reduces refrigerant pressure	Refrigerant cools down, ready to absorb more heat

The Role of the Reversing Valve

The reversing valve is the unsung hero of the reverse cycle heat pump. It’s a clever device that allows the system to switch between heating and cooling modes by changing the direction of the refrigerant flow. Without it, you’d need two separate systems – one for heating and one for cooling.

Here’s how it works:

• Heating Mode: The reversing valve directs the hot refrigerant from the compressor to the indoor coil (condenser), where it releases heat into your home. The cooled refrigerant then flows to the outdoor coil (evaporator) to absorb heat from the outside air.
• Cooling Mode: The reversing valve redirects the hot refrigerant from the compressor to the outdoor coil (condenser), where it releases heat into the outside air. The cooled refrigerant then flows to the indoor coil (evaporator) to absorb heat from inside your home.

Efficiency and Energy Savings

One of the biggest advantages of reverse cycle heat pumps is their energy efficiency. Unlike traditional heating systems that burn fuel to generate heat, heat pumps simply transfer heat from one place to another. This makes them much more efficient.

Here are some factors that contribute to their efficiency:

• Coefficient of Performance (COP): This measures the heating efficiency. A COP of 3 means that for every unit of electricity consumed, the heat pump produces 3 units of heat.
• Seasonal Energy Efficiency Ratio (SEER): This measures the cooling efficiency. Higher SEER ratings indicate better energy efficiency.
• Inverter Technology: Many modern heat pumps use inverter technology, which allows the compressor to operate at variable speeds. This means the system can adjust its output to match the heating or cooling demand, saving energy and maintaining a more consistent temperature.

According to the U.S. Department of Energy, heat pumps can reduce your electricity use for heating by as much as 50% compared to electric resistance heating such as furnaces and baseboard heaters. This can translate to significant savings on your energy bills over time.

Factors Affecting Performance

While reverse cycle heat pumps are highly efficient, their performance can be affected by several factors. Understanding these factors can help you optimize your system for maximum efficiency and comfort.

• Outdoor Temperature: Heat pumps become less efficient as the outdoor temperature drops. In extremely cold climates, they may struggle to extract enough heat from the air to keep your home warm. This is why some heat pump systems include a backup heating system, such as electric resistance heaters, for very cold days.
• Insulation: Proper insulation is crucial for maintaining a comfortable temperature and reducing energy consumption. If your home is poorly insulated, heat will escape in the winter and enter in the summer, making it harder for the heat pump to maintain the desired temperature.
• Maintenance: Regular maintenance, such as cleaning the filters and coils, is essential for keeping your heat pump running efficiently. Dirty filters and coils can restrict airflow and reduce the system’s ability to transfer heat.
• Size: Choosing the right size heat pump for your home is important. An undersized unit will struggle to heat or cool your home adequately, while an oversized unit may cycle on and off too frequently, wasting energy and reducing comfort.

Types of Reverse Cycle Heat Pumps

There are several types of reverse cycle heat pumps available, each with its own advantages and disadvantages. Here are some of the most common types:

• Air-Source Heat Pumps: These are the most common type of heat pump. They transfer heat between your home and the outside air. They are relatively inexpensive to install but can be less efficient in extremely cold climates.
• Geothermal Heat Pumps: Also known as ground-source heat pumps, these systems transfer heat between your home and the ground. The ground temperature remains relatively constant year-round, making geothermal heat pumps more efficient than air-source heat pumps, especially in extreme climates. However, they are more expensive to install.
• Ductless Mini-Split Heat Pumps: These systems consist of an outdoor unit and one or more indoor units. They don’t require ductwork, making them a good choice for homes without existing ductwork or for adding heating and cooling to individual rooms.

Here’s a comparison table of different heat pump types:

Type	Source	Pros	Cons
Air-Source	Outside Air	Lower installation cost, widely available	Efficiency drops in extreme cold
Geothermal	Ground	High efficiency, stable performance	Higher installation cost
Ductless Mini-Split	Outside Air	No ductwork required, zoned heating/cooling	Can be more expensive than central air-source

Maintenance Tips for Your Reverse Cycle Heat Pump

To keep your reverse cycle heat pump running efficiently and reliably, regular maintenance is essential. Here are some tips to help you care for your system:

• Clean or Replace Filters Regularly: Dirty filters restrict airflow and reduce the system’s efficiency. Check your filters monthly and clean or replace them as needed.
• Keep Outdoor Unit Clear: Remove any debris, such as leaves, snow, or ice, from around the outdoor unit. This will ensure proper airflow and prevent damage to the unit.
• Schedule Professional Maintenance: Have your heat pump inspected and serviced by a qualified technician at least once a year. They can check the refrigerant levels, clean the coils, and identify any potential problems before they become major issues.
• Monitor Performance: Pay attention to how your heat pump is performing. If you notice any unusual noises, reduced airflow, or a decrease in heating or cooling performance, contact a qualified technician for assistance.

Troubleshooting Common Issues

Even with regular maintenance, you may encounter some common issues with your reverse cycle heat pump. Here are some troubleshooting tips to help you resolve these problems:

• Heat Pump Not Turning On: Check the thermostat settings, circuit breaker, and power switch. Make sure the system is set to the correct mode (heating or cooling) and that the temperature is set appropriately.
• Insufficient Heating or Cooling: Check the filters, vents, and outdoor unit for obstructions. Make sure the thermostat is set correctly and that the system is properly sized for your home.
• Unusual Noises: Contact a qualified technician for assistance. Unusual noises, such as banging, hissing, or grinding, could indicate a serious problem with the compressor or other components.
• Ice Buildup on Outdoor Unit: This can occur in cold weather. If the ice buildup is excessive, it could indicate a problem with the defrost cycle. Contact a qualified technician for assistance.

FAQ About Reverse Cycle Heat Pumps

Here are some frequently asked questions about reverse cycle heat pumps:

What is the lifespan of a reverse cycle heat pump?

A well-maintained reverse cycle heat pump can last 15-20 years.

Are heat pumps noisy?

Modern heat pumps are designed to operate quietly. However, you may hear some noise from the outdoor unit when it’s running.

Can heat pumps work in very cold climates?

Yes, but their efficiency decreases as the temperature drops. Some models are specifically designed for cold climates.

How much does it cost to install a reverse cycle heat pump?

The cost varies depending on the type of system and the size of your home. Air-source heat pumps are generally less expensive to install than geothermal heat pumps.

Are heat pumps environmentally friendly?

Yes, because they transfer heat rather than generate it, they use less energy and reduce carbon emissions compared to traditional heating and cooling systems. Using a heat pump reduces the amount of greenhouse gas emissions.

Do heat pumps require ductwork?

Not always. Ductless mini-split heat pumps don’t require ductwork, making them a good choice for homes without existing ductwork.

How often should I service my heat pump?

It’s recommended to have your heat pump serviced by a qualified technician at least once a year.

Conclusion

Understanding how a reverse cycle heat pump works can empower you to make informed decisions about your home heating and cooling needs. These systems offer an efficient and environmentally friendly way to keep your home comfortable year-round. By knowing the basic components, how the system operates in both heating and cooling modes, and how to maintain it properly, you can ensure your heat pump provides reliable and cost-effective comfort for years to come. So, next time you feel that perfect temperature in your home, you’ll know exactly how that reverse cycle heat pump is working its magic!

“`
